Nozzles overview
There are four different types adpater. Depending on the type of adapter is different at or above the tube / hose. Technical drawings see the data sheets.

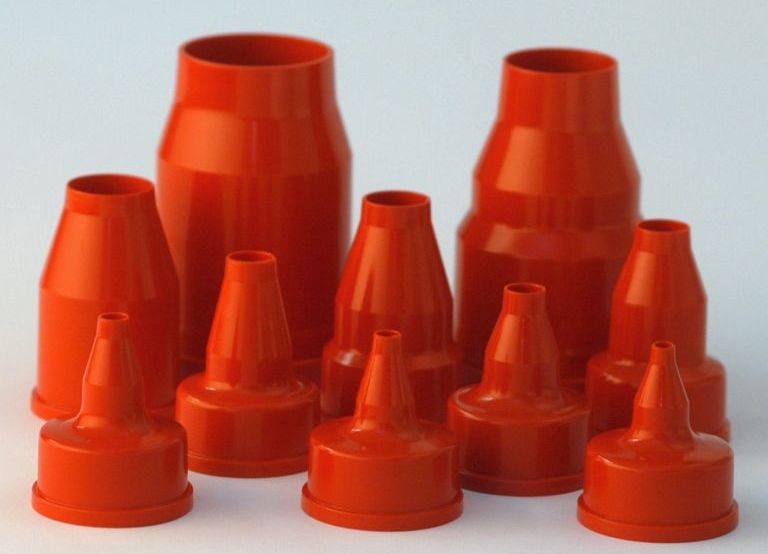

Item Description P-Unit

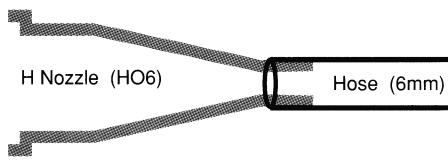

H06 Universal Hose Type 6mm or ¼ inch single
H08 Universal Hose Type 8mm or 5/16 inch single
H10 Universal Hose Type 10mm or 3/8 inch single
H13 Universal Hose Type 13mm or ½ inch single
H19 Universal Hose Type 19mm or 5/8 inch single
H25 Universal Hose Type 25mm or ¾ inch single
H32 Universal Hose Type 32mm or 1-¼ inch single
H38 Universal Hose Type 38mm or 1-½ inch single
H50 Universal Hose Type 50mm or 2 inch single

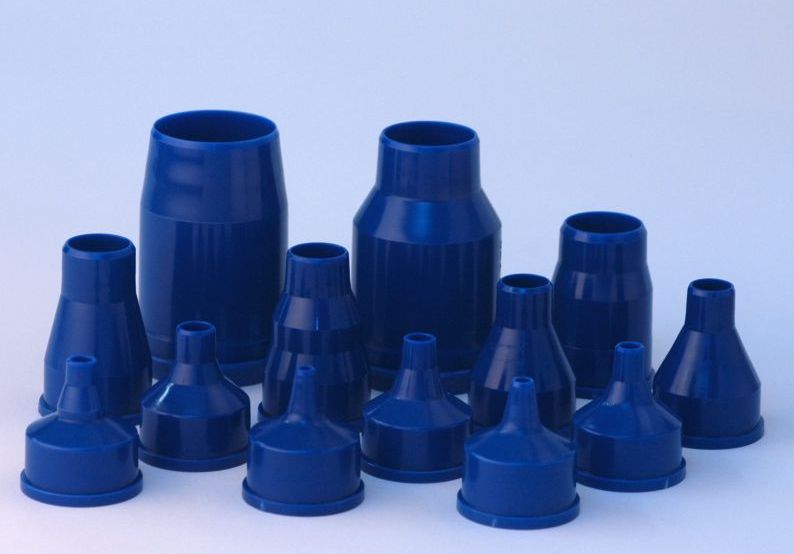

Item Description P-Unit

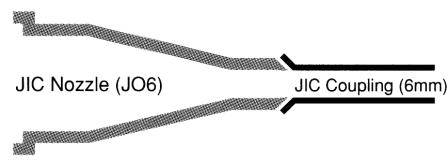

J06 JIC Type 6mm, ¼ inch single
J08/T06 JIC Type 8mm, 5/16 inch or Tube 6mm ¼inch single
J10 JIC Type 10mm, 3/8 inch single

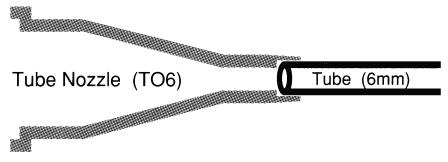

T10 Tube Type 10mm, 3/8 inch single
J13/T13 JIC and Tube Type 13mm, ½ inch single
J16/T16 JIC and Tube Type 16mm, 5/8 inch single
J19/T19 JIC and Tube Type 19mm, ¾ inch single
J25/T22 JIC 25mm, 1 inch or Tube 22mm, 7/8 inch single
T32 Tube Type 32mm, 1-¼ inch single
J32/T25 JIC 32mm, 1-¼ inch or Tube 25mm, 1 inch single
J38/T38 JIC and Tube Type 38mm, 1-½ inch single
J50/T50 JIC and Tube Type 50mm, 2 inch single

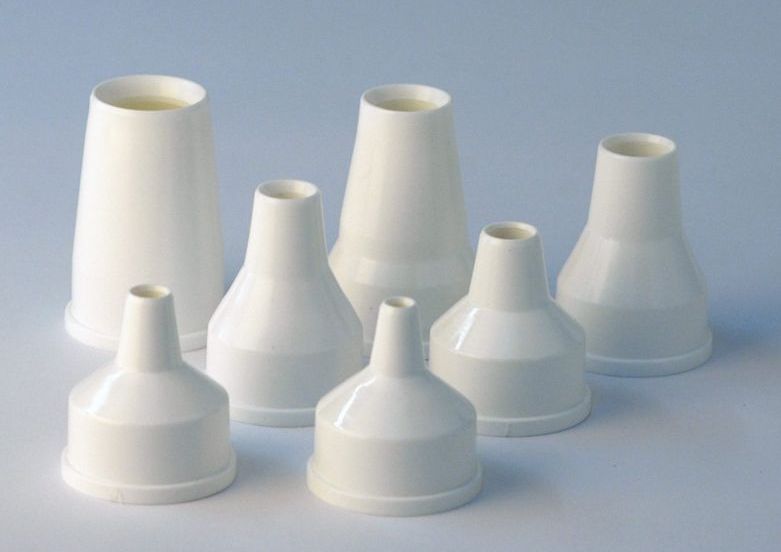

Item Description P-Unit
BSP06 BSP Type 6mm or ¼ inch single
BSP10 BSP Type 10mm or 3/8 inch single
BSP13 BSP Type 13mm or 5/8 inch single
BSP16 BSP Type 16mm or 5/8 inch single
BSP19 BSP Type 19mm or ¾ inch single
BSP25 BSP Type 25mm or 1 inch single
BSP32 BSP Type 32mm or 1-¼ inch single
